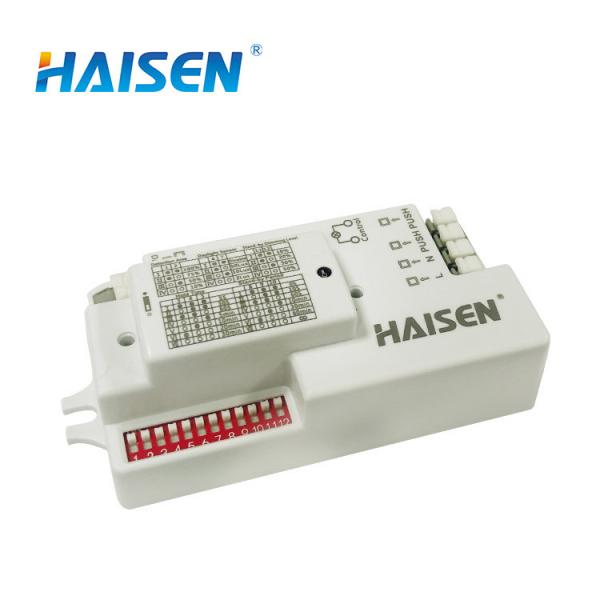

Name: DIP Switch DALI Motion Sensor Wide Detection Range For Ceiling Light
Brand: HAISEN
Price: 8 USD

Brand Name : HAISEN

Model Number : HDD01

Certification : CE

Place of Origin : China

MOQ : 100PCS

Price : USD8-9/PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order

Packaging Details : Bubble pack, paper flat, outer carton.

Connect : DALI dimmable

Warranty : 5 years

Application : triproof or batten light

Voltage : 120-240V

Contact Now

DIP Switch DALI Motion Sensor Wide Detection Range For Ceiling Light

CE Approved 120~240 VAC Dimmable DALI Sensor For Ceiling Light

Product Description

Switching capacity	Max.200W(Control gear) Max.400W(Incandescent lamp)
Output	PUSH/ DALI
Stand-by power	<1W
Detection area	10%/50%/75%/100%
Hold time	5s/30s/1min/5min/10min/20min/30min
Daylight threshold	2Lux/10Lux/50Lux/Disable
Stand-by period	0s/10s/60S/10min/ 30min/1H/+∞
Stand-by dimming level	10%/20%/30%/50%
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Interfaces	6-pole pluggable clamp terminal (L,N,PUSH,DALI) for 0.75- 1.5mm2 cable
Mounting height	Max.8m(ceiling mounted)
Detection range	Max.ø12m(ceiling mounted)
Detection angle	150°
Operating temperature	-20°C~+60°C
IP rating	IP20
Life time	50,000 hours
Warranty	5 years
